DATASHEET

MACHINE DETAILS

  • Machine no. 1038-20768

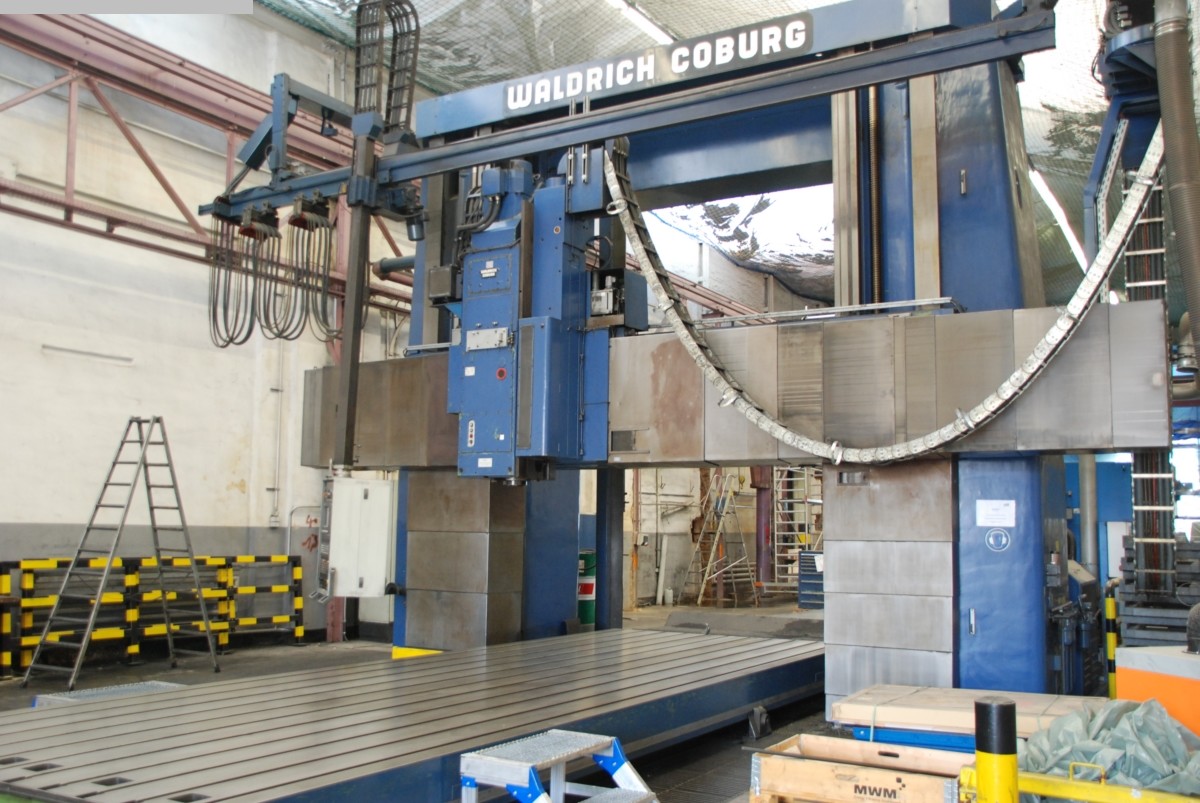

  • Machinetype Planer-Type Milling M/C - Double Column
  • Make WALDRICH-COBURG
  • Type 20-10 FP 280
  • Year of construction 1973/1999
  • Control CNC
  • Location Hünxe
  • Country of origin Germany
  • Delivery time to be agreed on
  • Quotation ex warehouse

  • Price

TECHNICAL DETAILS



  • x-travel 17700 mm
  • y-travel 4755 mm
  • z-travel 800 mm
  • milling width 3450 mm
  • distance table - vertical milling spindle 3682 mm
  • table height over floor 500 mm
  • spindle diameter in front bearing 200 mm
  • turning speed range 12 - 450 U/min
  • tool taper ISO 60
  • axial adjustment of the spindle slide 800 mm
  • creep feed 5 und 50 mm/min
  • feed stepless 10 - 3000 mm/min
  • cross adjustment of cross beam milling head 4745
  • rapid traverse 2 m/min
  • creep feed 3 und 30 mm/min
  • feed stepless 6 - 2000 mm/min
  • rapid traverse 10 m/min
  • creep feed 3 und 30 mm/min
  • feed stepless 6 - 2000 mm/min
  • vertical adjustment of cross beam 3682 mm
  • rapid traverse 1,5 m/min
  • creep feed 1,25 und 12,5 mm/min
  • feed stepless 5 - 1500 mm/min

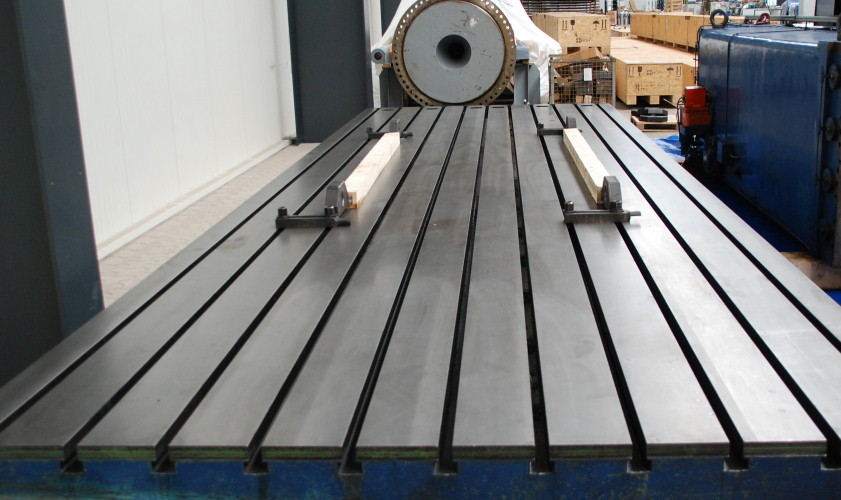

  • table-size 17800x2800 mm
  • column daylight 3600 mm
  • Control SIEMENS 840 C
  • table load 50.000/100.000 kg
  • drive of main spindle 100 kW
  • total power requirement 170 kW
  • weight of the machine ca. 300 t
  • dimensions of the machine ca. 40 x 8,4x 8,6 m



DESCRIPTION

+ electrically renewed including cabinet, cabling and motors and equipped with
a SIEMENS 840 C in 1999.
+ incl. 16 milling heads and misc.tools

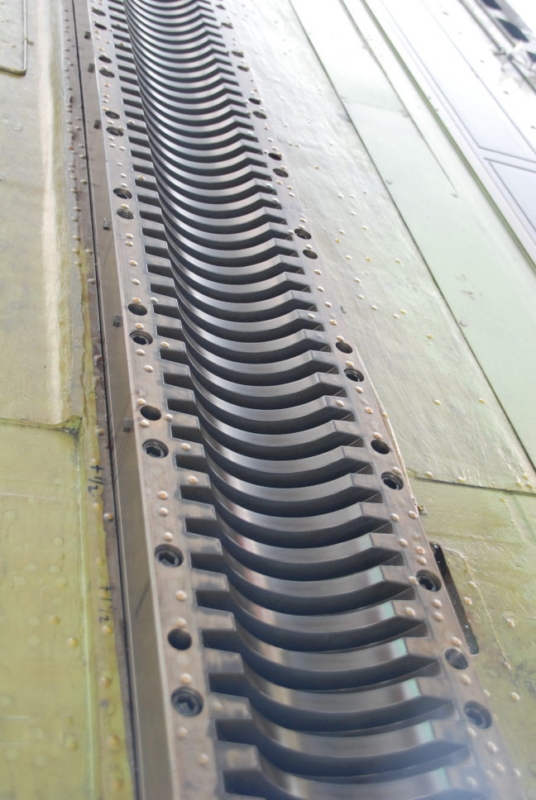

the drive of x-axis consists of one hydrostatic screw with hydrostatic rack




Changes and errors in the technical details and information reserved.
