DATASHEET

MACHINE DETAILS

  • Machine no. 1038-20977

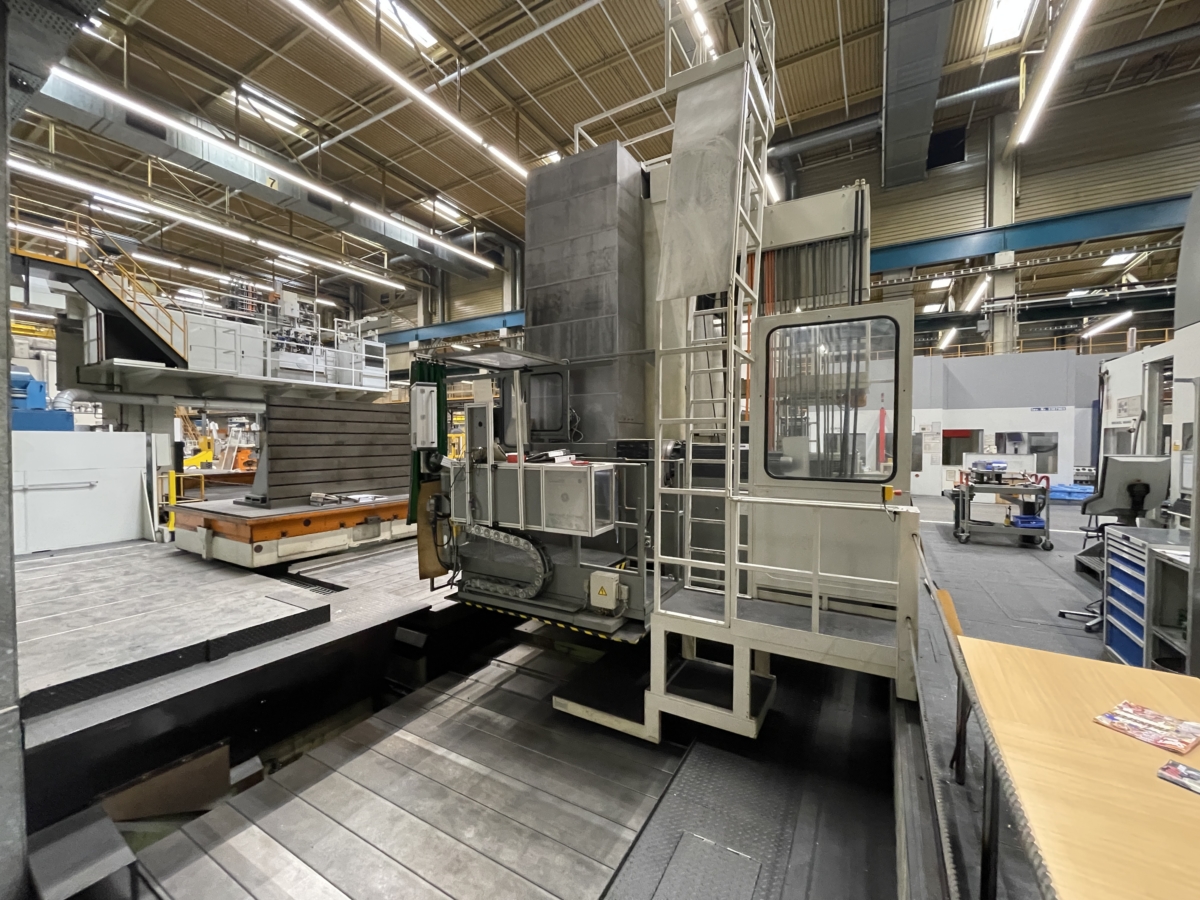

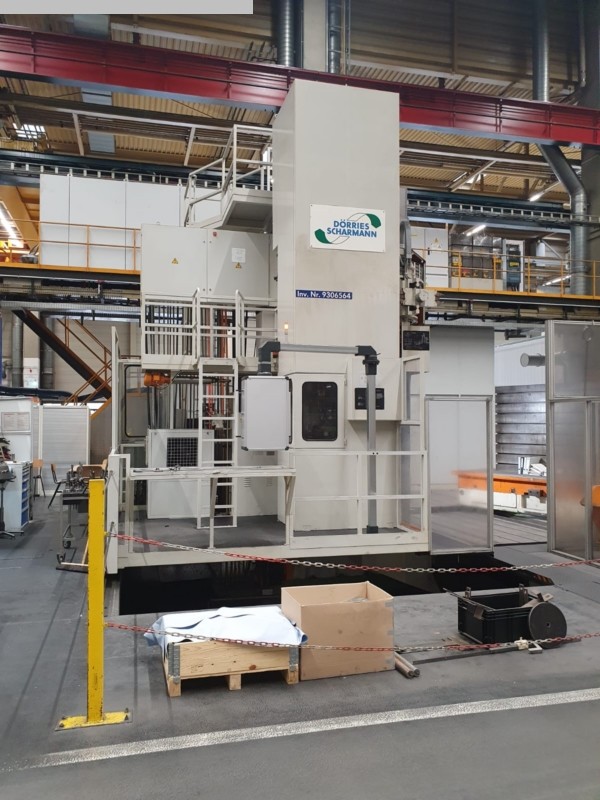

  • Machinetype Ram-Type Floor Boring and Milling M/C
  • Make SCHARMANN
  • Type Heavycut 3.3 / TDV 6
  • Year of construction 1989/2012
  • Control CNC
  • Location Tönisvorst
  • Country of origin Germany
  • Delivery time immediately
  • Quotation ex warehouse

  • Price

TECHNICAL DETAILS



  • spindle diameter 180 mm
  • x-travel 5000 mm
  • y-travel 3000 mm
  • bore spindle stroke 1000 mm
  • ram stroke 1000 mm
  • dimension of the ram 425 x 425 mm
  • spindle taper ISO 50
  • spindle turning speed - stepless 3 - 1600 U/min
  • feed stepless 0 - 10000 mm/min
  • table surface area 3500 x 2500 mm
  • table rotating 360 °
  • table load 50 t
  • power capacity 90 kW
  • rapid traverse 154 m/min
  • table travel 2500 mm
  • table height 1450 mm
  • weight of the machine ca. 125 t
  • dimensions of the machine ca. 11x12x6,3 m



DESCRIPTION

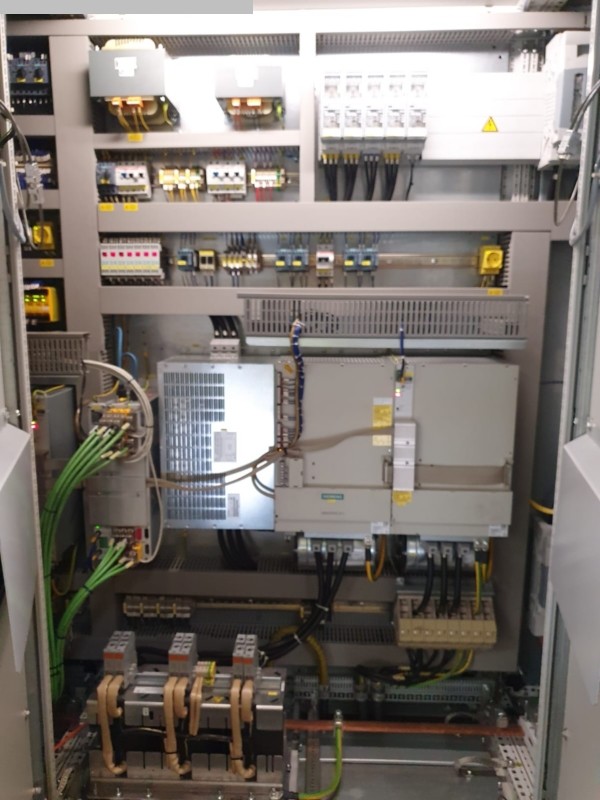

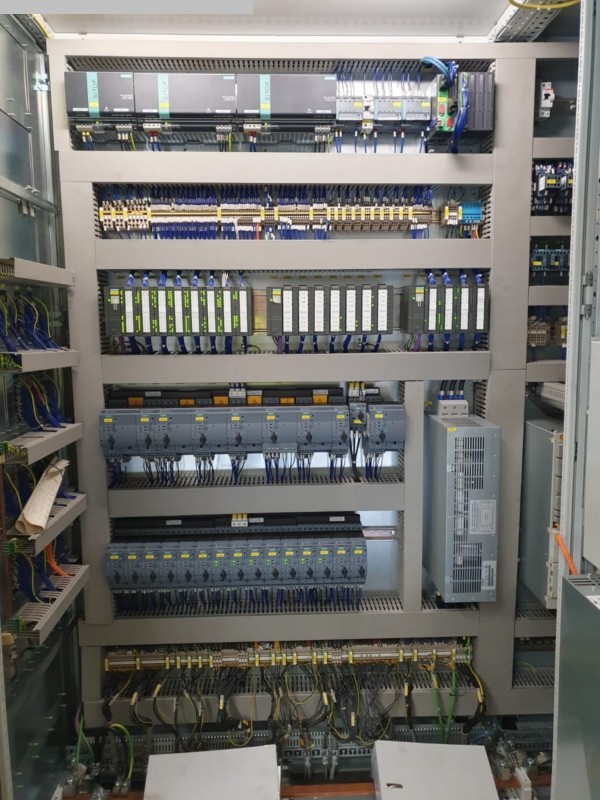

+ completely electrically overhauled with new motors in 2012 and equipped with
a new control Heidenhain iTNC 530!
+ NC-turn table 3500 x 2500 mm - 50 to cap.
+ ATC 60-fold
+ Cooling unit with internal cooling
+ chip conveyor

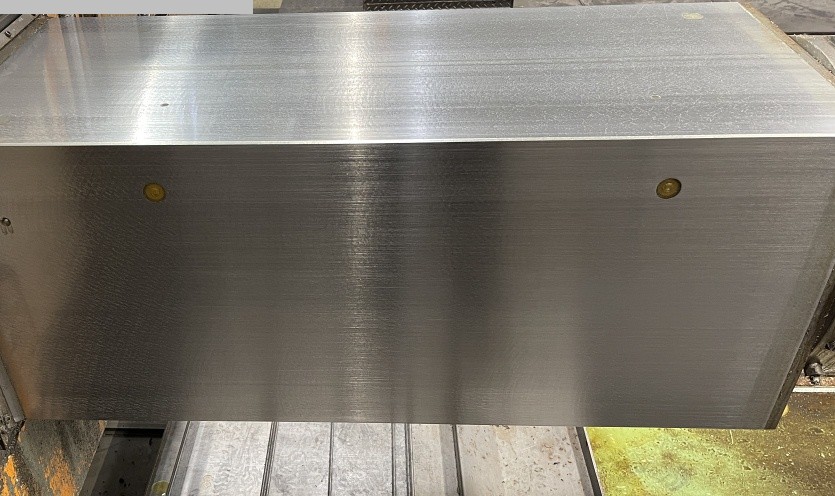

+ angle clamping plate 2400x1700x1200 mm
+++++ mecahincally and electrically in top condition! +++++




Changes and errors in the technical details and information reserved.
