DATASHEET

MACHINE DETAILS

  • Machine no. 1038-80466

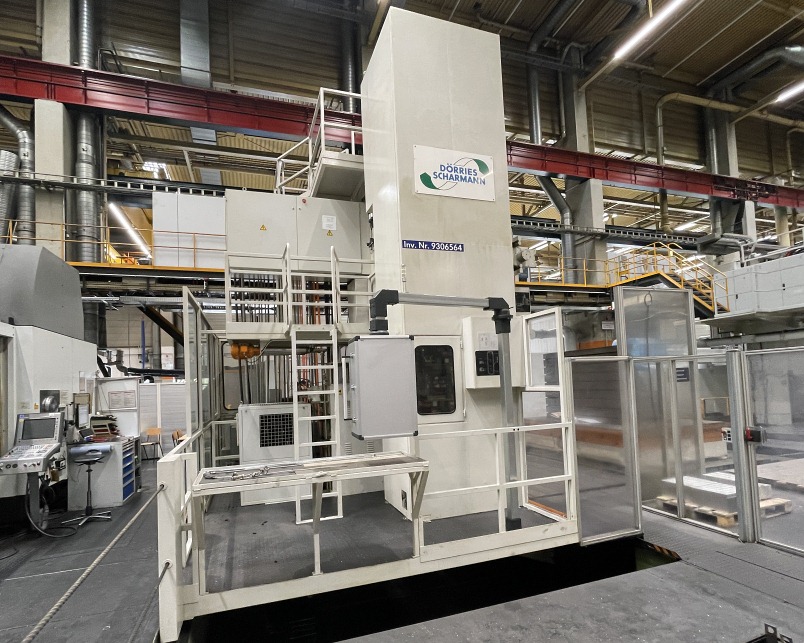

  • Machinetype Table Type Boring and Milling Machine
  • Make DÖRRIES-SCHARMANN
  • Type Heavycut 3.3 / TDV 6
  • Year of construction 1989/2012
  • Control CNC
  • Location Tönisvorst
  • Country of origin Germany
  • Delivery time immediately
  • Quotation ex warehouse

  • Price

TECHNICAL DETAILS



  • spindle diameter 180 mm
  • x-travel 5000 mm
  • y-travel 3000 mm
  • bore spindle stroke 1000 mm
  • ram stroke 1000 mm

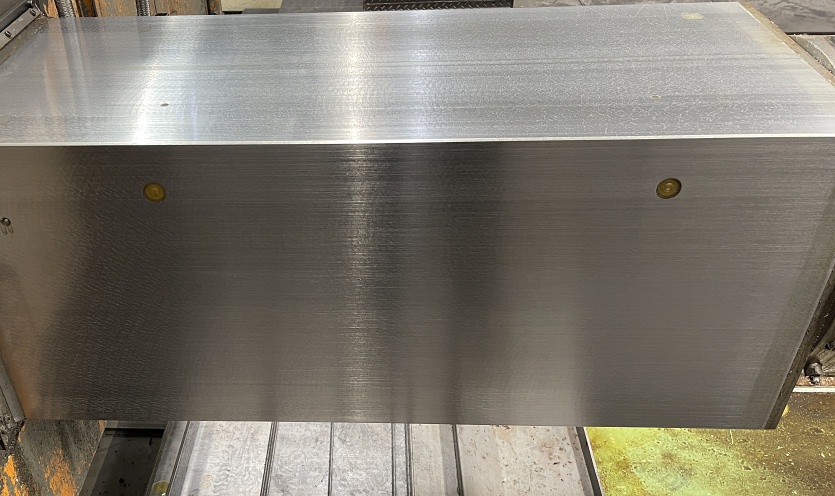

  • dimension of the ram 425 x 425 mm
  • spindle taper ISO 50
  • spindle turning speed - stepless 3 - 1600 U/min
  • feed stepless 0 - 10000 mm/min
  • table surface area 3500 x 2500 mm
  • table rotating 360 °
  • table load 50 t
  • power capacity 90 kW
  • rapid traverse 10 m/min
  • table travel 154 mm
  • table height 1450 mm
  • total power requirement kW
  • weight of the machine ca. 125 t
  • dimensions of the machine ca. 11x12x6,3 m



DESCRIPTION

The condition of the machine is very good because the make a
completeoverhauling an after that the work very less with the machine

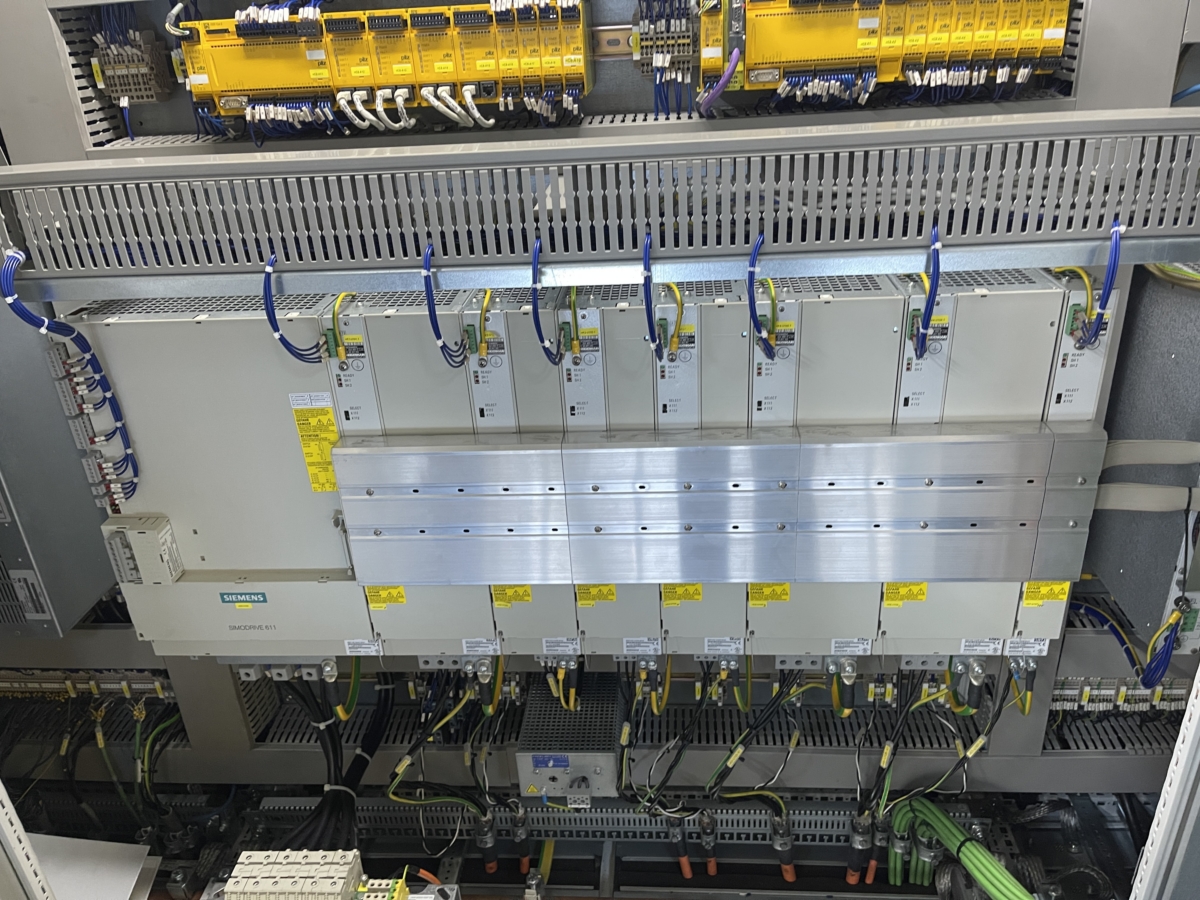

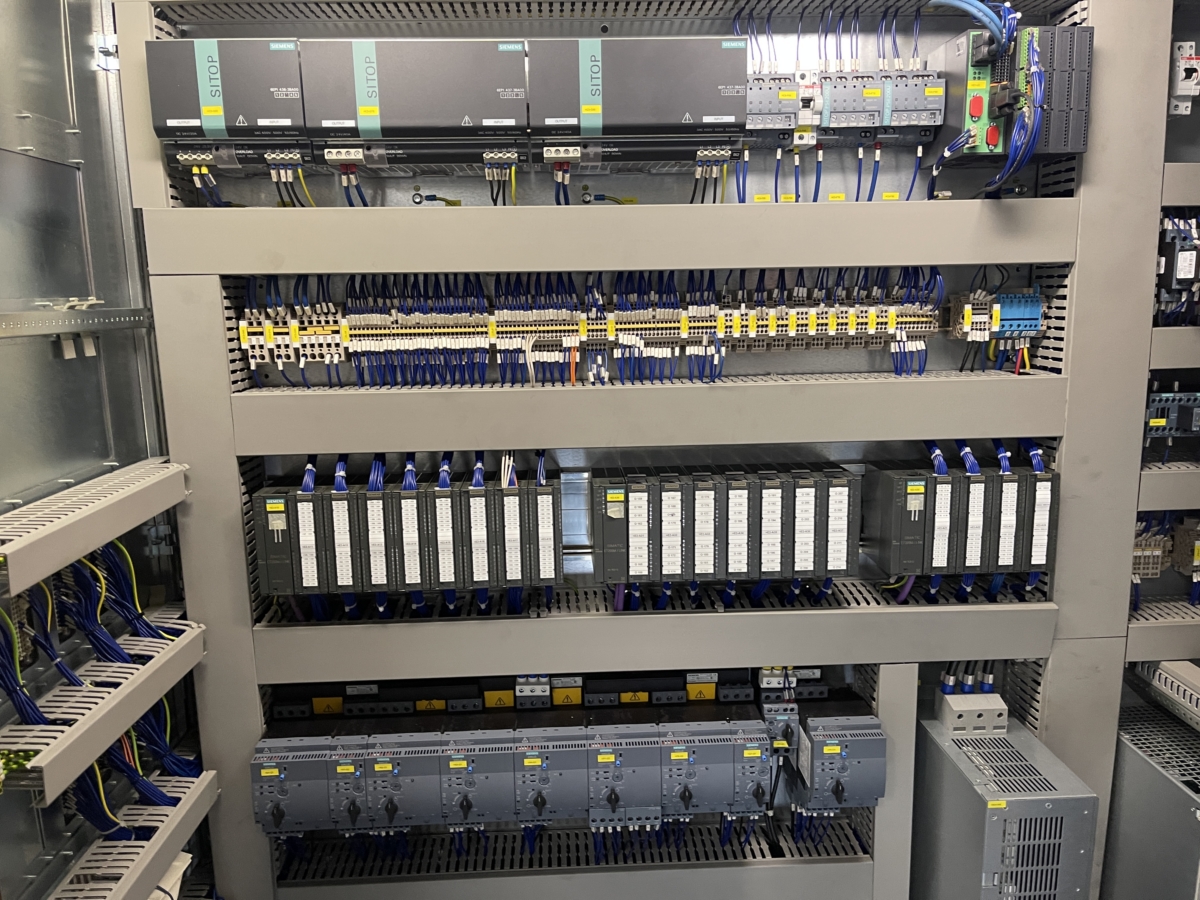

completely electrically overhauled with new motors, drives, wires and electric
cabinet in 2012 and equipped with

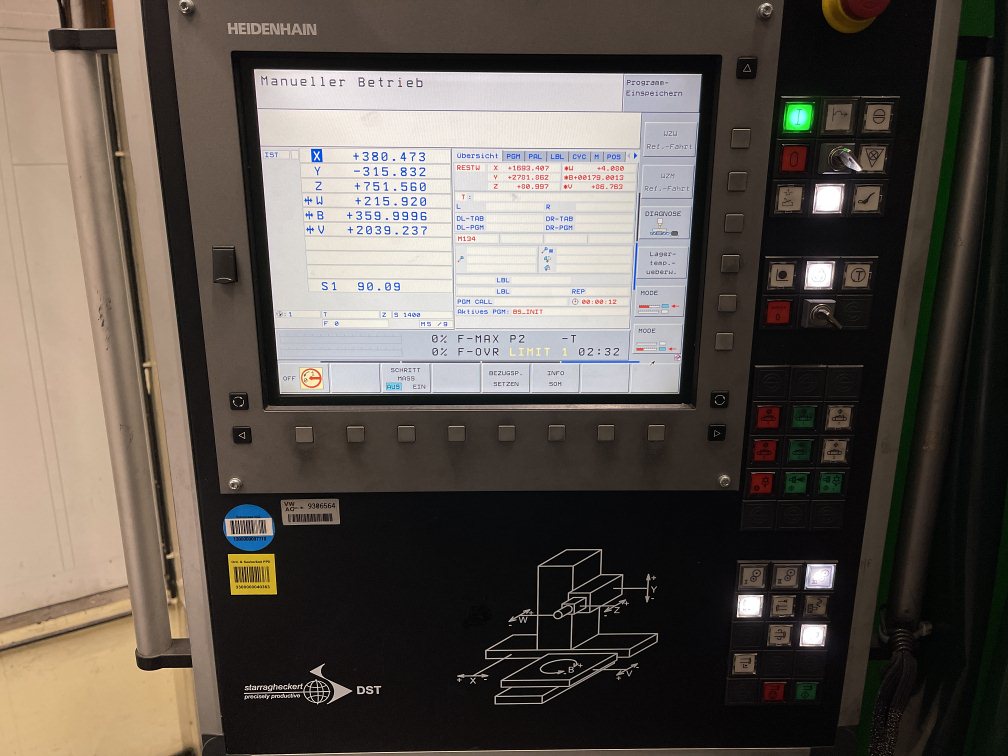

a new control Heidenhain iTNC 530!
+New covers for the axes.
+New pumps and tubes
+New ball crews for the axes

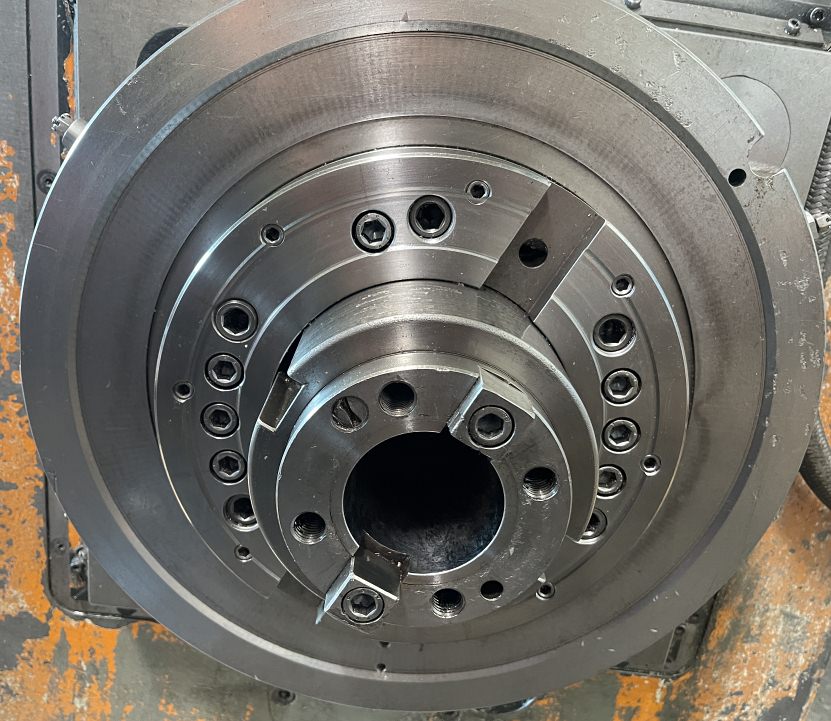

+Complete over hauling from the spindelhead

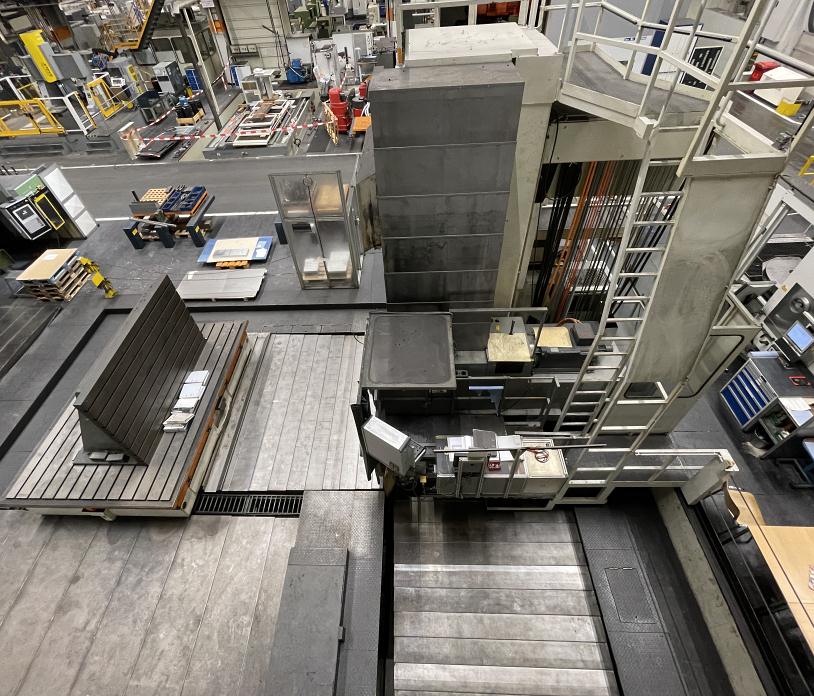

+ NC-turn table 3500 x 2500 mm - 50 to cap.
+ ATC 60-fold

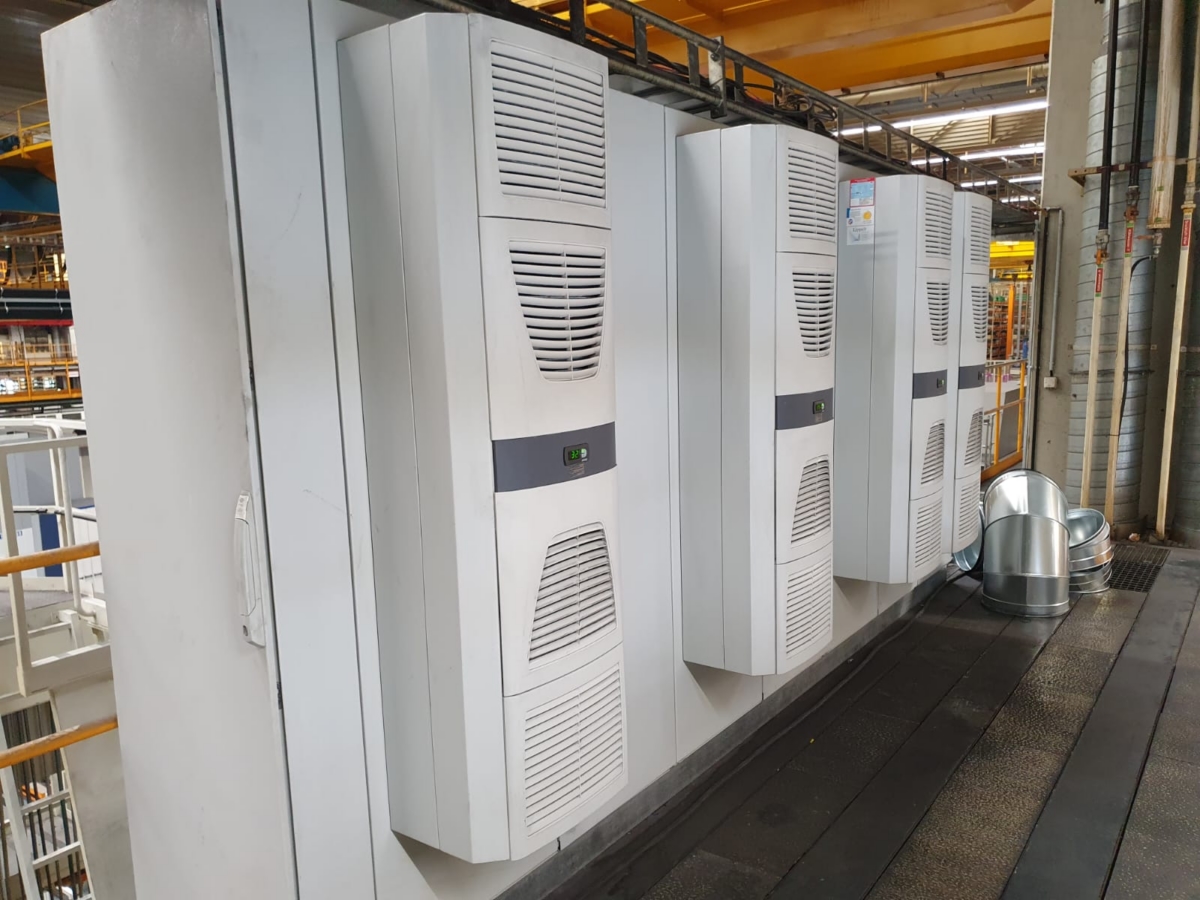

+ Cooling unit with internal cooling
+ chip conveyor

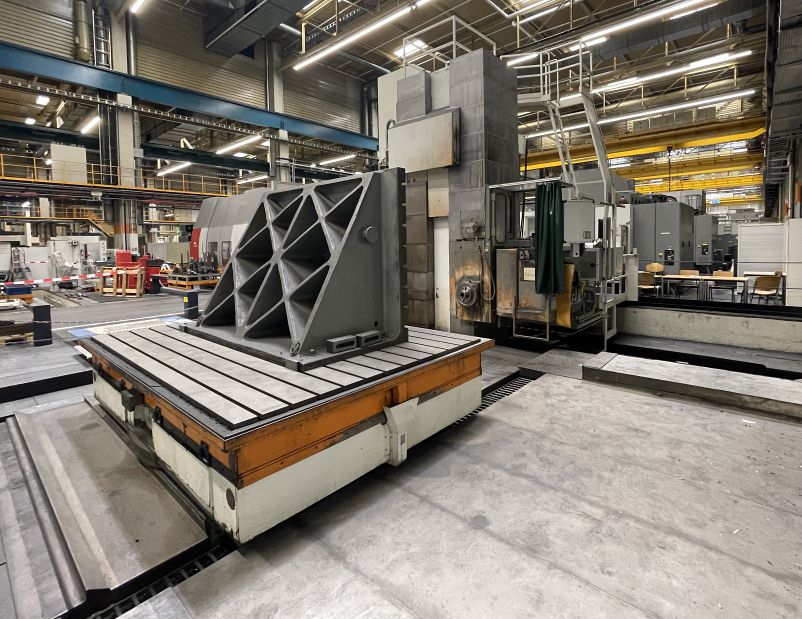

+ angle clamping plate 2400x1700x1200 mm
+++++ mecahincally and electrically in top condition! +++++




Changes and errors in the technical details and information reserved.
