DATASHEET

MACHINE DETAILS

  • Machine no. 1038-90365

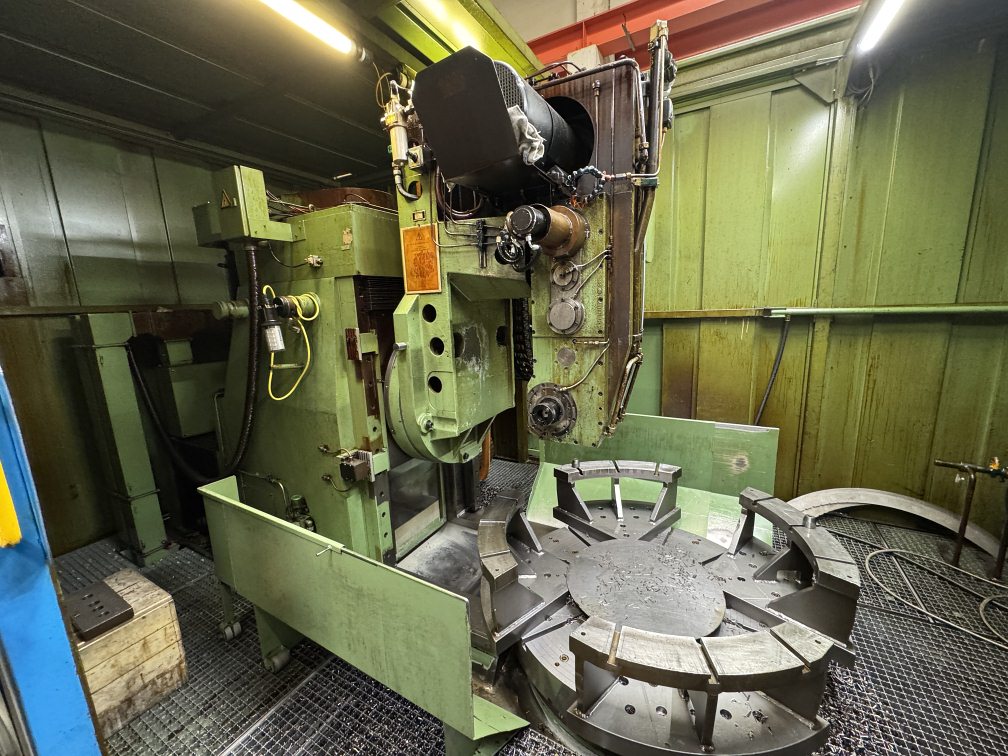

  • Machinetype Gear Hobbing Machine - Vertical
  • Make PFAUTER
  • Type P 1503
  • Year of construction -
  • Control conventional
  • Location ex location
  • Country of origin Germany
  • Delivery time to be agreed on
  • Quotation ex location, not dismantled

  • Price

TECHNICAL DETAILS



  • max. wheel diameter 1500 mm
  • gear width 000 mm
  • max. module
  • min. module
  • axial slide travel 600 mm

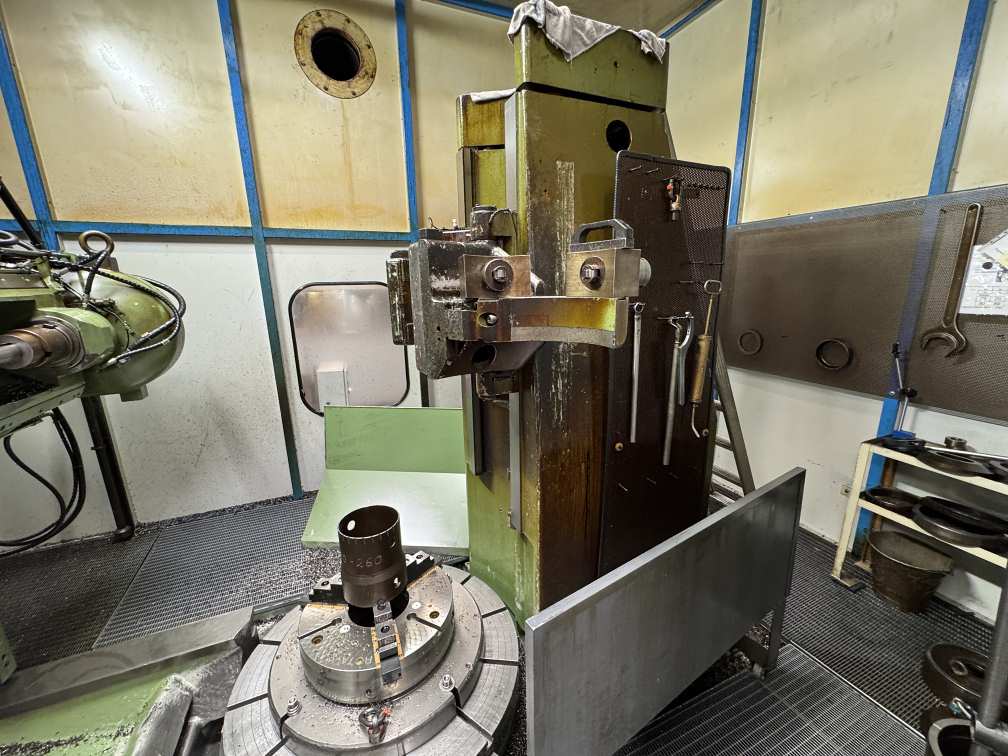

  • distance - table - arm of counterstay 1482 mm
  • distance between table/spindle 1067 mm
  • milling spindle - taper 55
  • diameter of hob 350 mm
  • width of hob 400 mm
  • axis distance between spindles min. / max. 50 / 935 mm
  • adjustment of milling-spindle 250 mm
  • milling slide swivelling 15 / 120 Grad
  • table diameter 1200 mm
  • table hole 300 mm
  • taper MK 6
  • turning speed - milling spindle 25 - 150 U/min
  • feeds axial 1 - 1000 mm/min
  • radial feed 1 - 1000 mm/min
  • tangential feed 1 - 500 mm/min

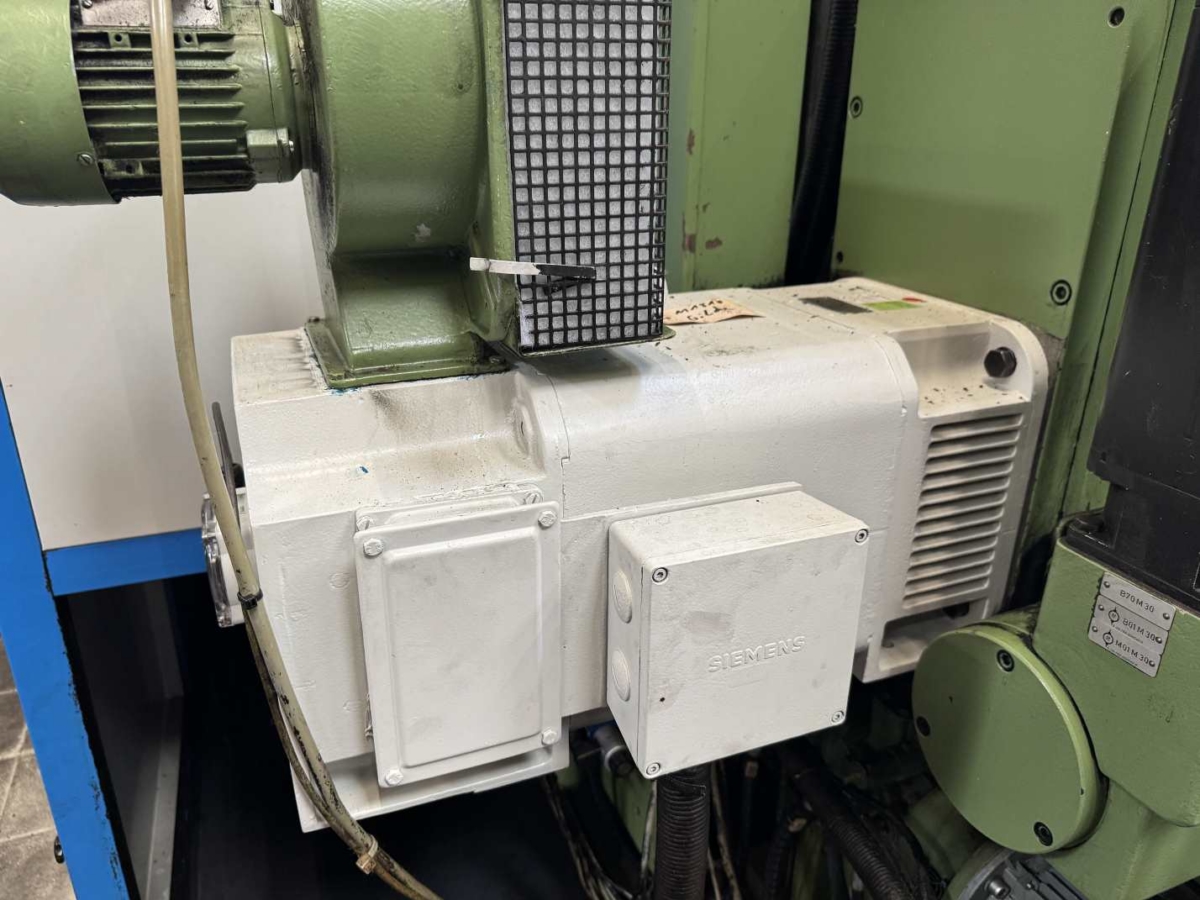

  • electrics - voltage/frequency 380 / 50 V/Hz
  • total power requirement 100 kVA

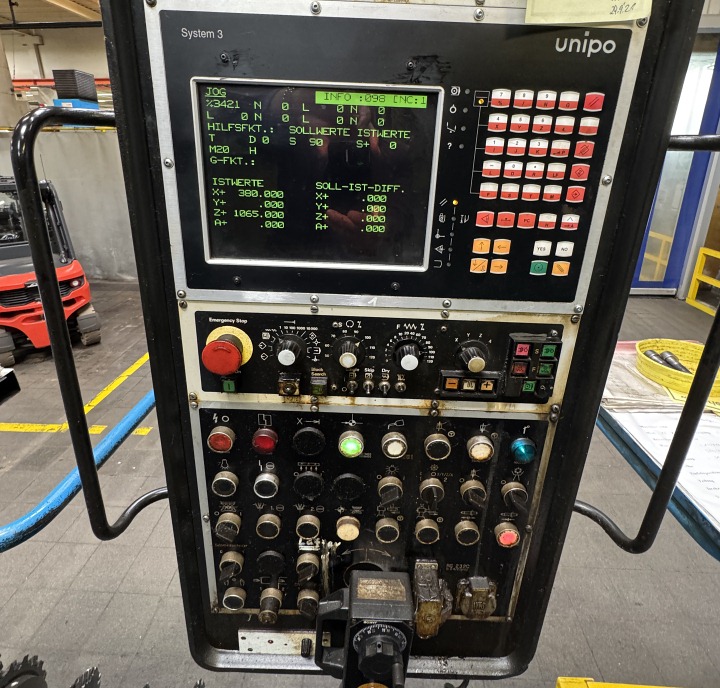

  • control Sinumerik 3
  • weight of the machine ca. 22 t
  • dimensions of the machine ca. 10,3 x 7,4 x 5,3 m


DESCRIPTION

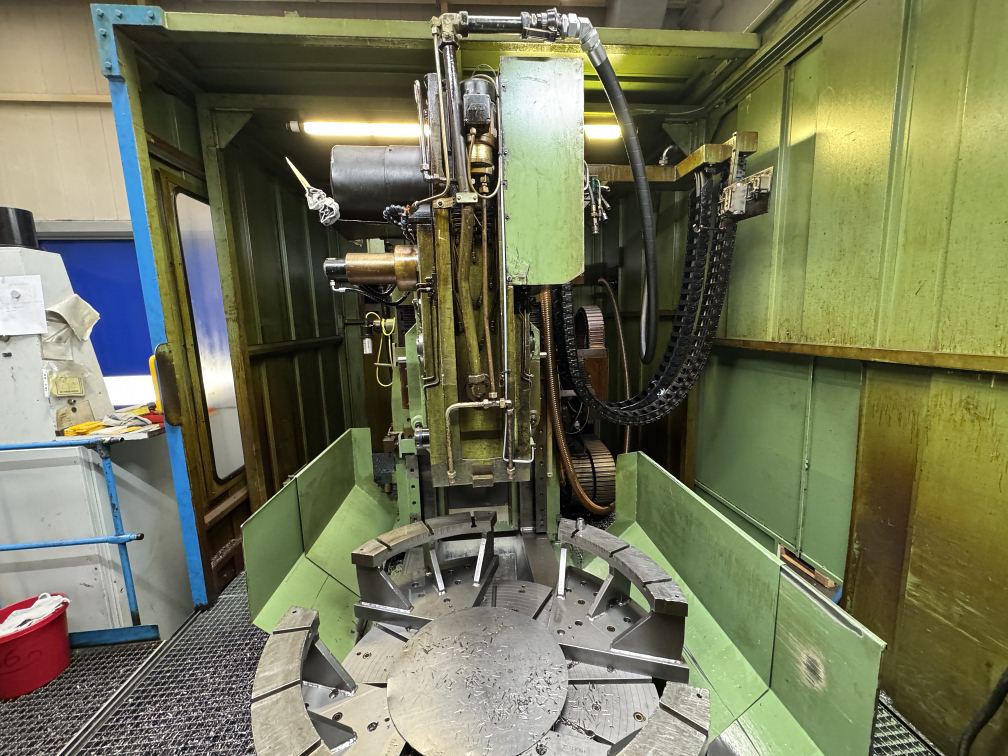

Machine has only internal milling head.




Changes and errors in the technical details and information reserved.
