DATASHEET

MACHINE DETAILS

  • Machine no. 1038-90367

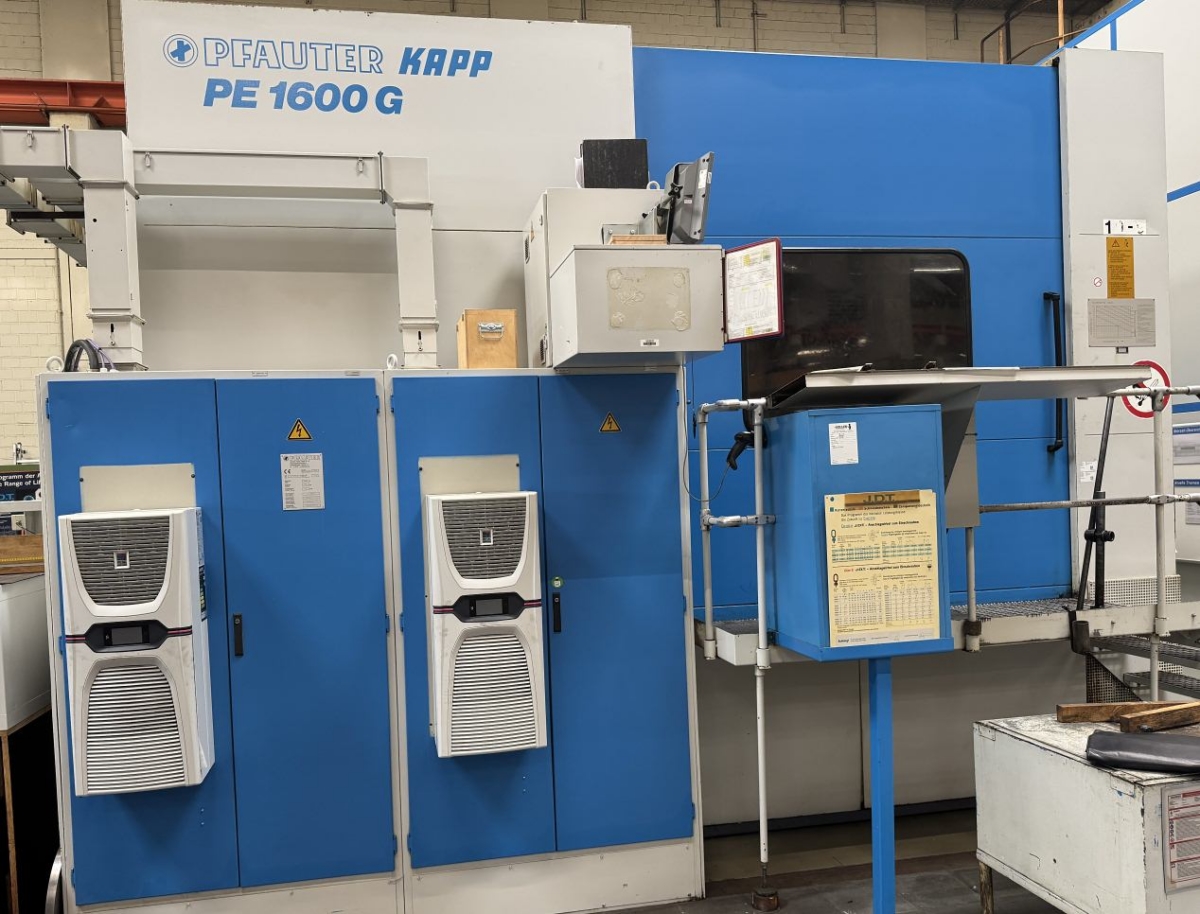

  • Machinetype Gear Grinding Machine
  • Make PFAUTER
  • Type PE 1600 G
  • Year of construction 1994
  • Control CNC
  • Location ex location
  • Country of origin Germany
  • Delivery time to be agreed on
  • Quotation ex location, not dismantled

  • Price

TECHNICAL DETAILS



  • max. wheel diameter 1.800 mm
  • gear width 000 mm
  • max. module
  • min. module
  • control Sinumerik 840 C
  • profile depth 80 mm

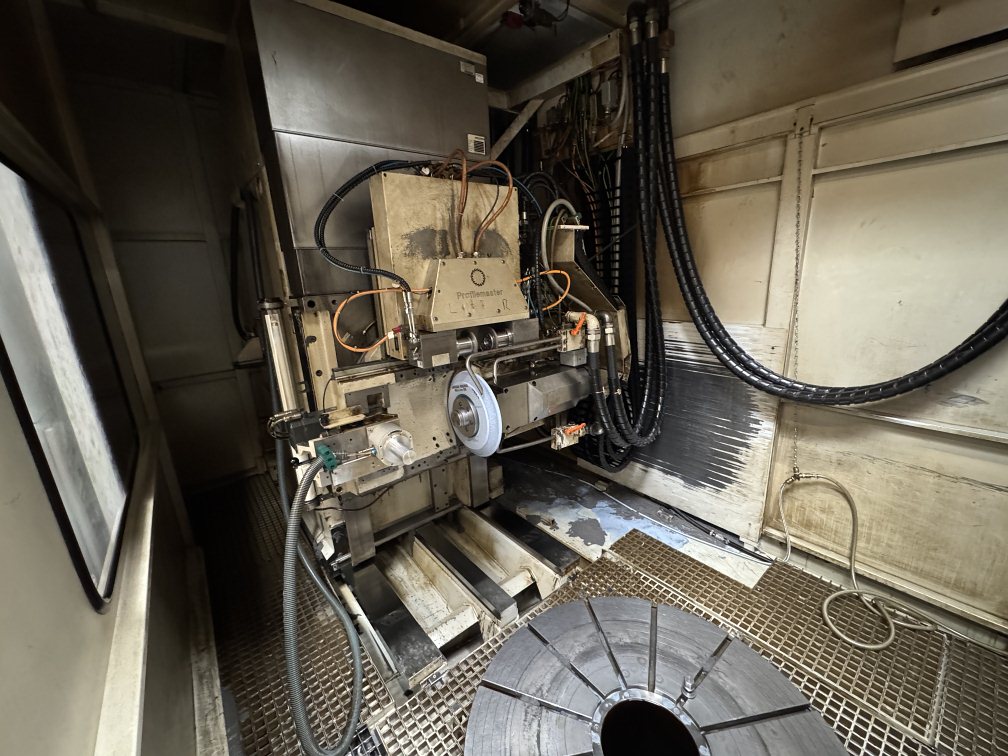

  • grinding wheel diameter 400 mm
  • grinding wheel width 80
  • diameter of spindle pin 140 mm
  • length of spindle pin 45 mm
  • radial slide travel 1.000 mm
  • tangential adjustment 300 mm
  • axial slide travel 1.000 mm

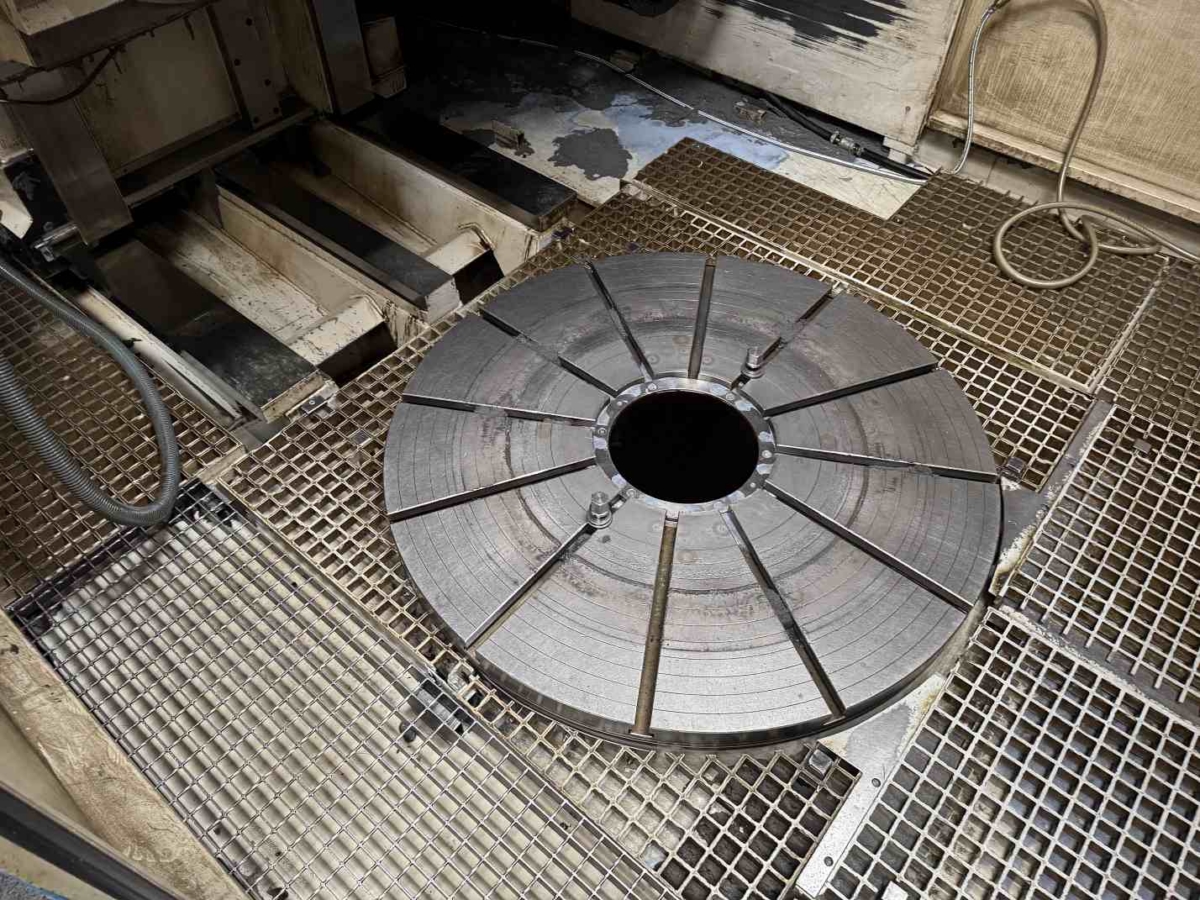

  • table diameter 1.200 mm
  • table hole 300 mm
  • feed speeds X: 3.000 mm/min
  • feed speeds Y : 5.000 mm/min
  • feed speeds Z: 6.000 mm/min
  • total power requirement 80 kW
  • weight of the machine ca. 15 t
  • dimensions of the machine ca. 7,7 x 6,9 x 3,9 m
  • electrics - voltage/frequency 400 / 50 V/Hz


DESCRIPTION

centering device




Changes and errors in the technical details and information reserved.
