DATASHEET

MACHINE DETAILS

  • Machine no. 1038-90383

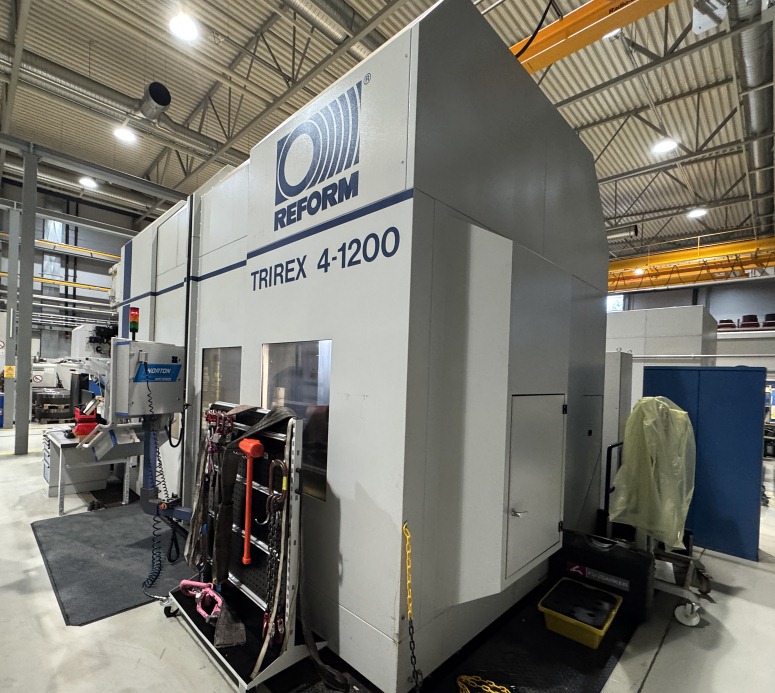

  • Machinetype Rotary Table Hole Grinding Machine
  • Make REFORM
  • Type Trirex 4-1200
  • Year of construction 2008
  • Control conventional
  • Location ex location
  • Country of origin Germany
  • Delivery time immediately
  • Quotation ex location, not dismantled

  • Price

TECHNICAL DETAILS

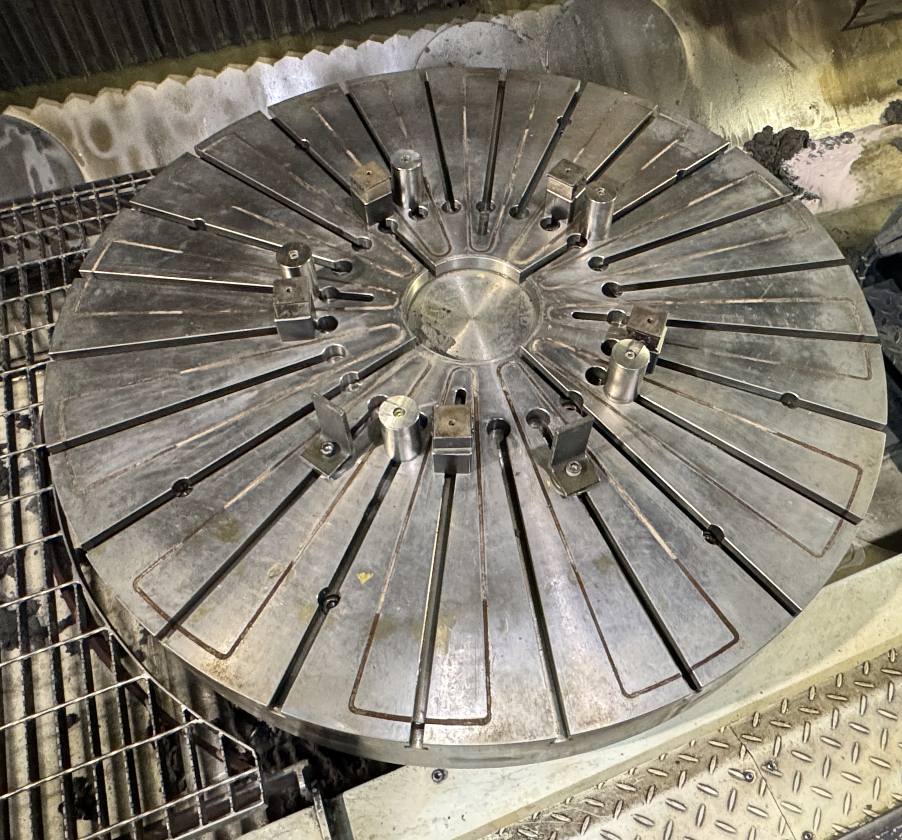

  • rotary table diameter 1200 mm
  • boring diameter 150 mm
  • drilling depth mm
  • z-axis 1550 mm
  • feeds z-axis 0,2-1500 m/min
  • rapid traverse Z-axis 12 m/min
  • x-axis 2300 mm
  • feeds x-axis 0,2-1500 mm/min
  • rapid traverse X-axis 12 m/min
  • Diameter of the table 1200 mm
  • swing diameter 1400 mm

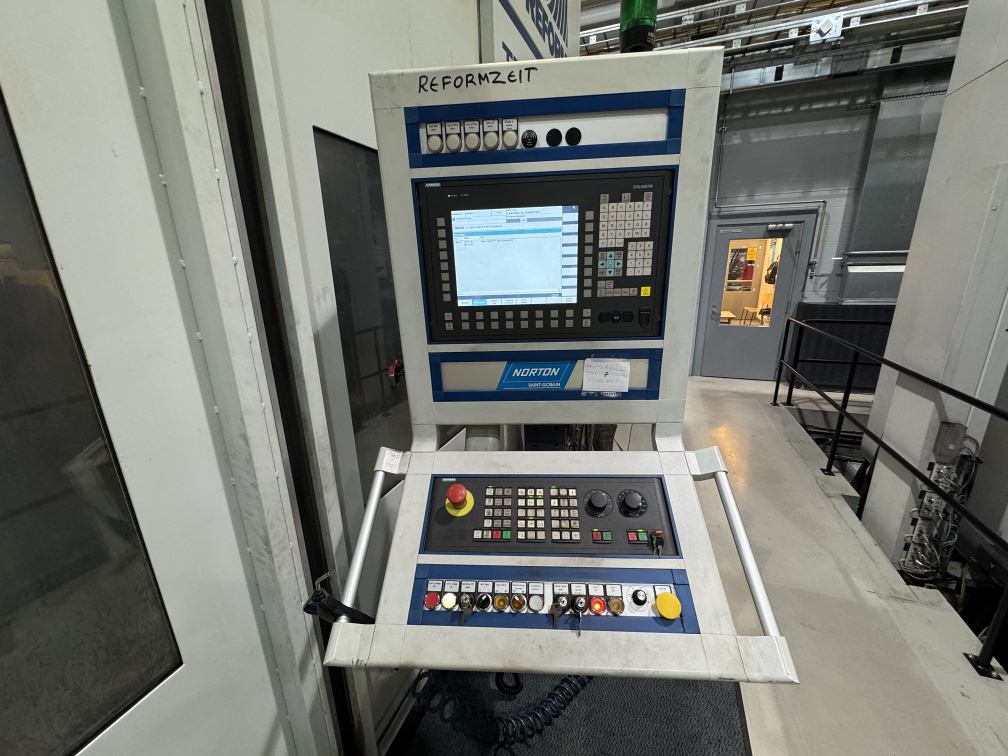

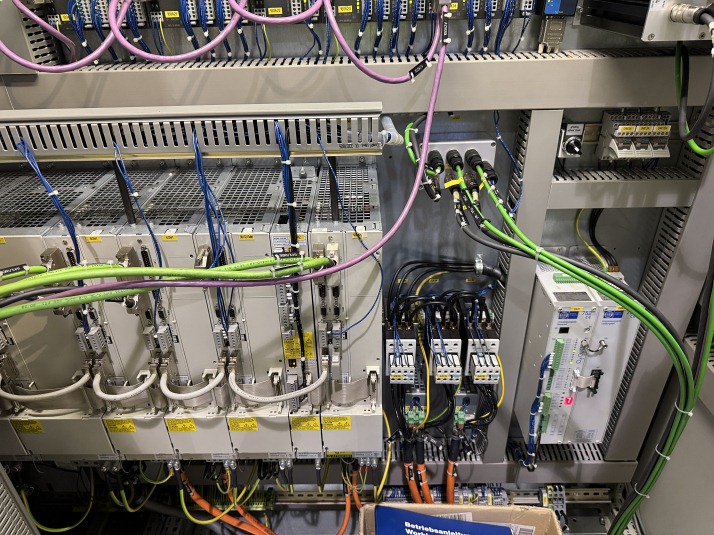

  • control Siemens 840D
  • swivel range of b axis +/-180 °
  • total power requirement 110 kW
  • weight of the machine ca. 40 t
  • dimensions of the machine ca. 9x4,5x4,7 m


DESCRIPTION

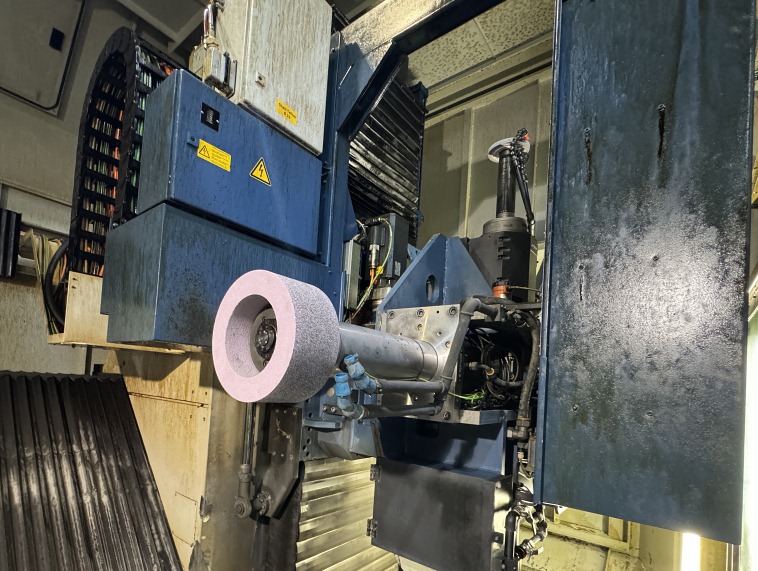

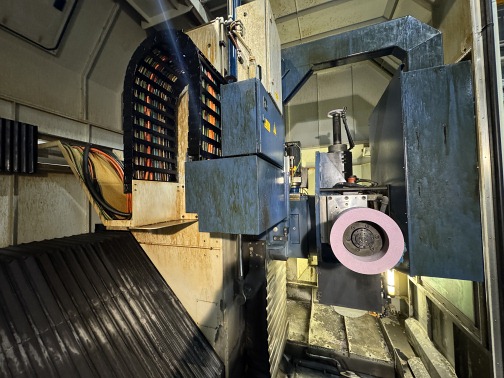

Multi-spindle head with 4 stations

- Spindle stations 1-3
- Spindle size D=140x630mm
- Grinding wheel diameter 200/400mm
- Adjustable grinding spindle speed 1500-4500 rpm
- Drive power 15 kW

- Spindle station 4 High-frequency spindle
- Maximum grinding wheel diameter 230mm
- Adjustable grinding spindle speed 2820/12000 rpm
- Drive power 25 kW

Station 5
Renishaw touch probe




Changes and errors in the technical details and information reserved.
